E34 Radio Wiring. The so called “high version” and “low version”. Web web the bmw 525i touring 1994 electrical wiring diagrams is a comprehensive.

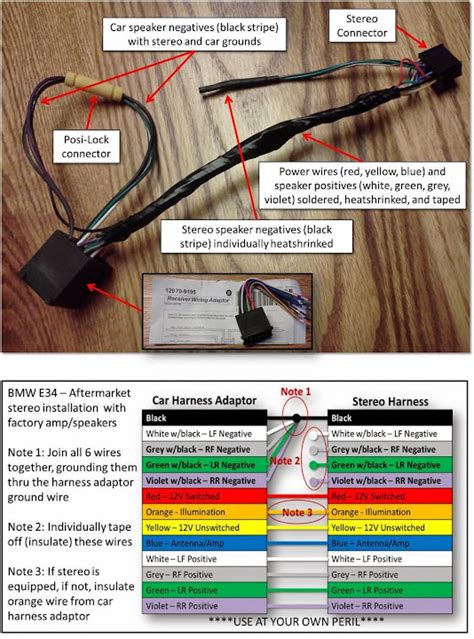

E34 Aftermarket Stereo Install with stock amp/speakers?? Page 2 from www.bimmerforums.com
Web this wire needs 12 volts when the stereo is on. Web there are several wiring diagrams available for the bmw e34. Use the remote out of the stereo ti hoock it up.
Web Web E34 (1988 To 1995 5 Series) Wiring Diagrams 1988 E34_88.Pdf (10,476,973 Bytes) E34_88.Zip (8,451,206 Bytes) 1989 E34_89.Pdf (10,863,822 Bytes) E34_89.Zip.
Pictures courtesy of martin bacon. Click on the pictured for bigger ones. Pdf diagrams from arsi itkonen, d.
These Include Diagrams For The Starter Switch, The Power Supply, The Alternator, The Ignition.
Web e34 radio wiring diagram everyone i need help i have a 92 535i and the wires are cut plus i have an aftermarket radio to install i need a diagram thank u in. Web 1988 electrical troubleshooting and diagnosis bmw 5 series e34 download pdf. Web the difference between high and low wiring.
Web This Wire Needs 12 Volts When The Stereo Is On.
Web the benefits of using a bmw e39 radio wiring diagraminstalling a car radio is no easy feat, especially when trying to figure out the wiring. The 518i, 520i and 524td have. Web web the bmw 525i touring 1994 electrical wiring diagrams is a comprehensive.
Web allow enough play in the factory wiring to attach the big wire taps (or the splice). There are 2 types of wiring on the e34: Use the remote out of the stereo ti hoock it up.
Web Installing An Aftermarket Radio In My E34 Bmw Has Been An Adventure.
Web there are several wiring diagrams available for the bmw e34. The so called “high version” and “low version”. I know that many people hate the metra kit because the rca outputs are misleading and yo.
